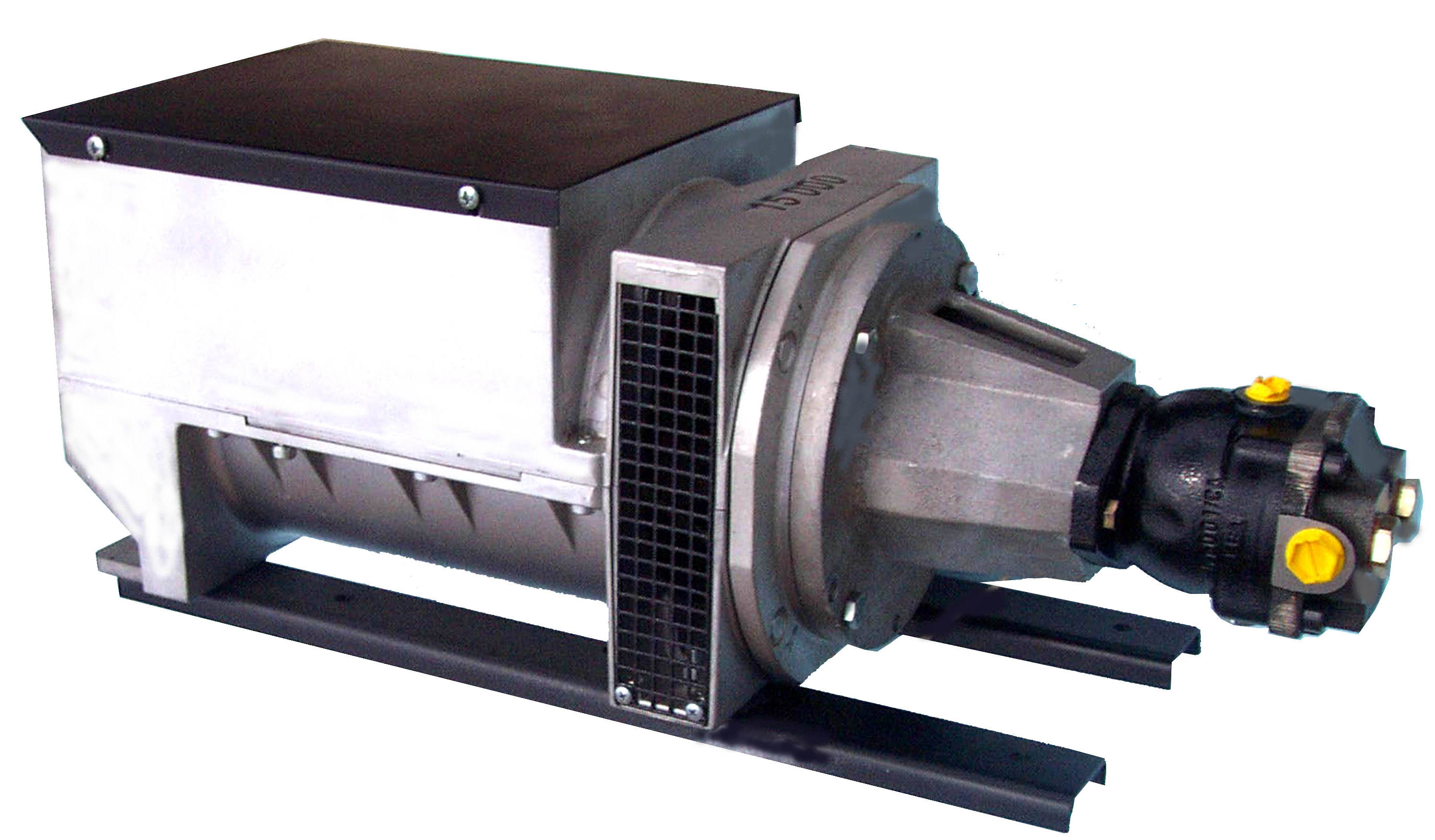

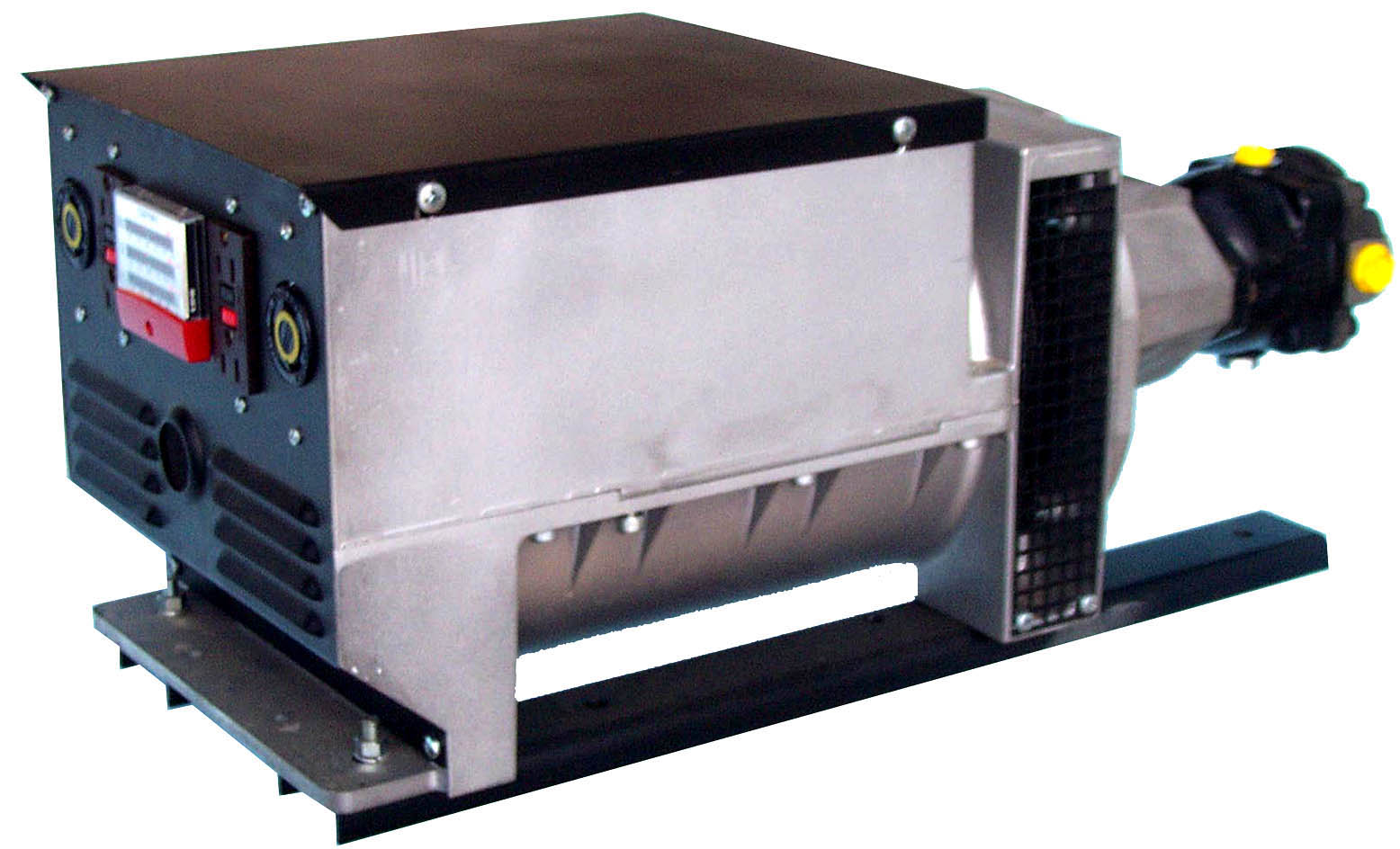

HYDRO-MAX P1200
HYDRAULICALLY PISTON MOTOR DRIVEN
AC GENERATOR
BY



120 / 240
V 60 Hz
12,000 Watts
1 Phase






QUALITY FEATURES
Brushless AC Generator  Includes Pressure Compensating Flow Regulator
Maintenance Free Design  Lifetime Guaranteed Alignment

SPECIFICATIONS
Flow  20 GPM  Volts  120 or 120 / 240
Pressure  =2000 PSI  Amps  100 @ 120 V
Speed  3600 RPM  Watts  12,000 Continuous
Weight  133 Lbs  Power Factor  1.0
Dimensions (inches)  11W*11H*29L  Temperature Rating  105 C
