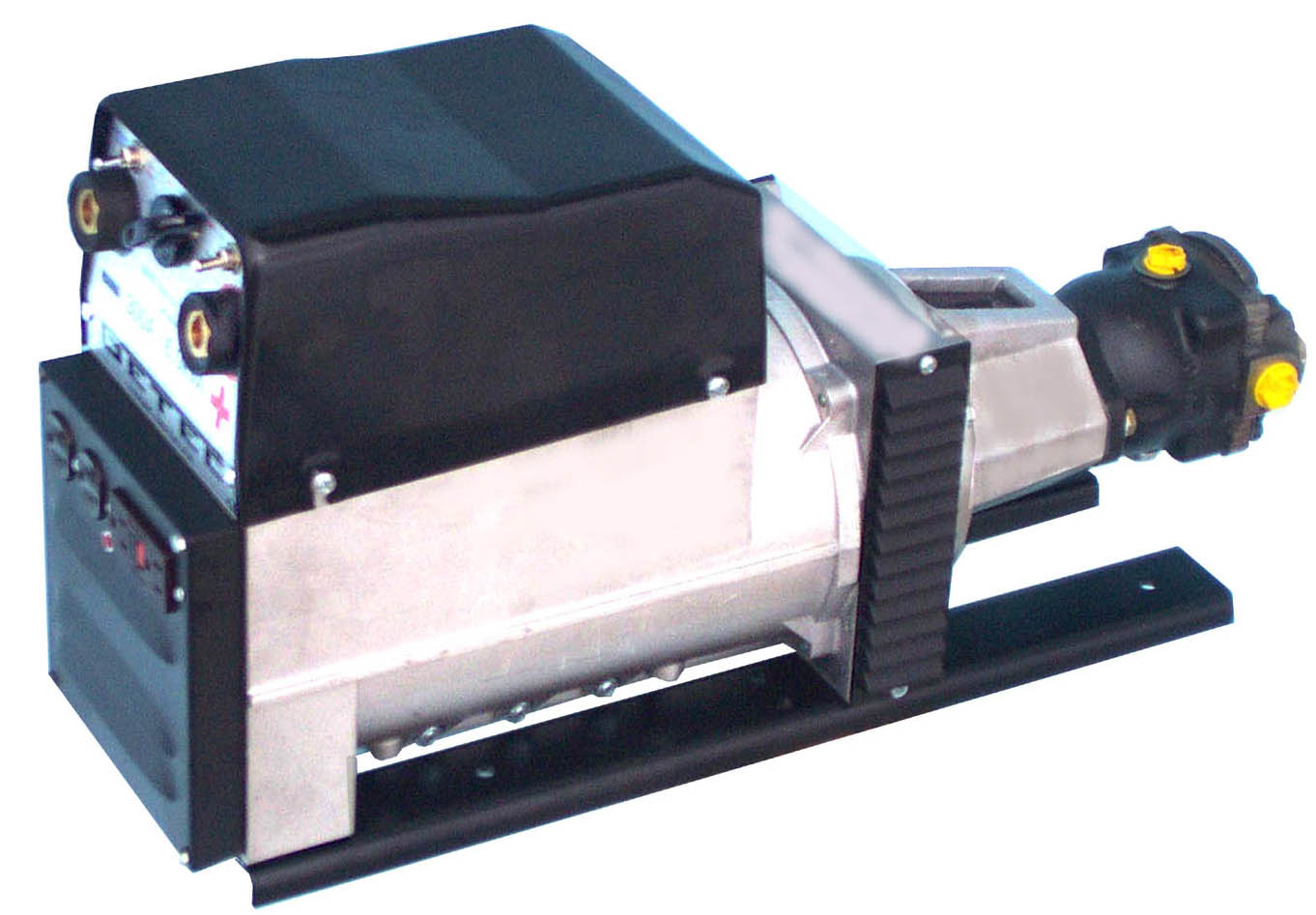

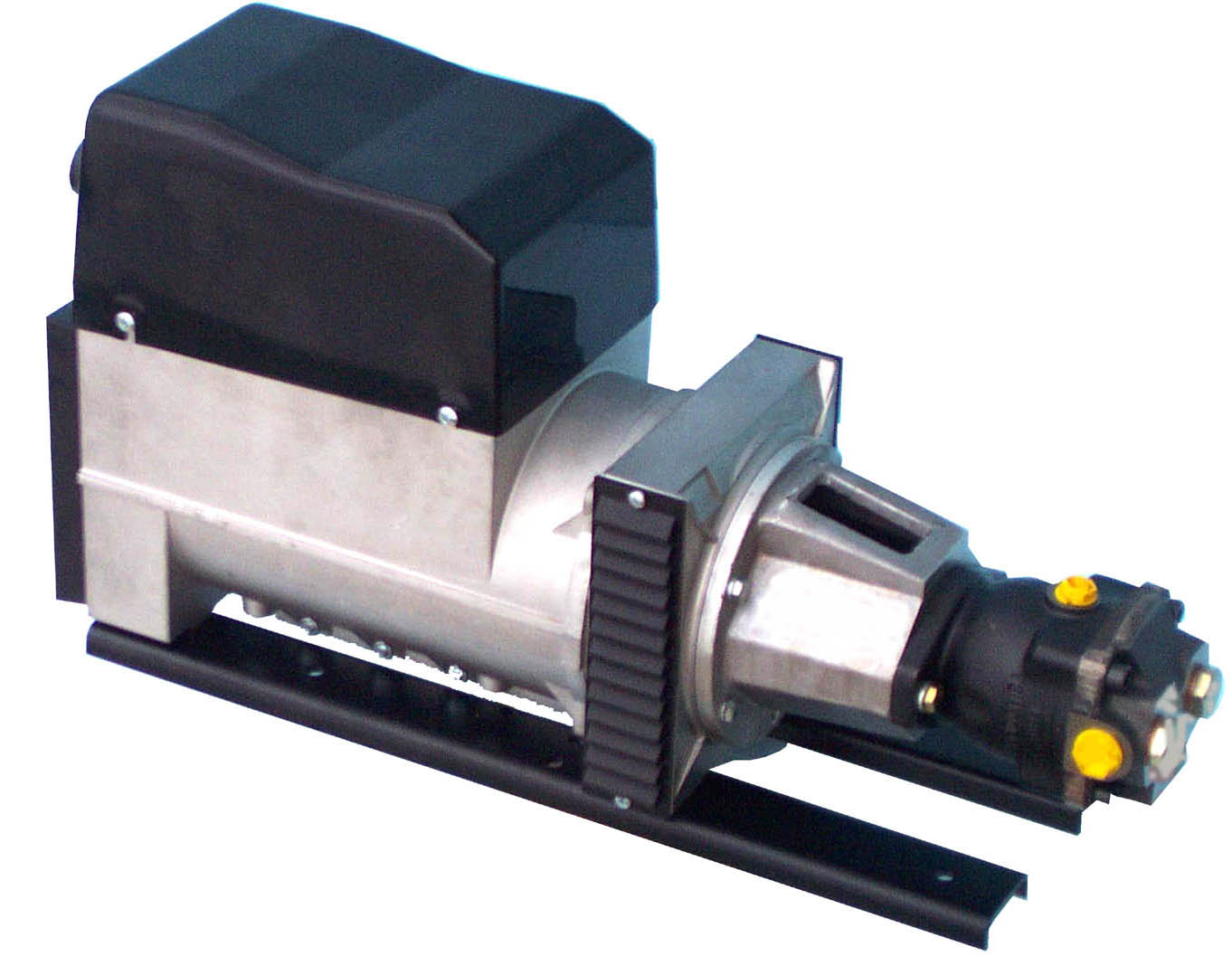

HYDRA-WELD P300-6

HYDRAULICALLY-DRIVEN  DC WELDER & AC GENERATOR  BY

120 / 240V 60 Hz  6000 Watts

300 Amp  DC



QUALITY FEATURES
300 DC Amps	7 Step – 3 Range
70% Duty Cycle	Locking Weld Receptacles

SPECIFICATIONS
Flow	= 20 GPM	Volts	= 120 or 120 / 240
Pressure	=2200 PSI Max	Generator Output	= 6000 Watt
Frequency	= 60 Hz	Amps	= 300 DC Amps
Weight	= 143 Lbs	Strike Voltage	= 82 VDC
Weld Voltage	= 22 – 28 VDC	Dimensions (inches)	= 8W*14H*27L

FERNDALE, NY 12734

(845) 292-0800  http://www.geteck.com
