Hydra-Weld 250 - 5.5

US-PAT# 4 172 367













TWO IN
ONE COMPACT PACKAGE







This Welder-Generator can do it all.  Not only is it the smallest and lightest unit
on the entire market and saves valuable space, it provides welding power and
electric power (120 Volt or 120/240 Volt) 60 Hz or optional DC.

The Hydra-Weld is a Hydraulically Driven DC Welder/AC Generator combination
set.  The Welder produces 250 Amps. of welding power, while the Generator
delivers 5500 Watts of reliable AC power.

This unit is now providing reliable power since 1985.

The built in pressure compensating flow regulator guarantees a constant Welder/Generator speed over a wide flow variations.







Specification


Welding Amps 250

Welding Range 40 - 250

Strike Volts 82 VDC

Welding Volts 22 - 28 VDC

Duty Cycle 70%

AC Volts 45.5 Amps @ 120V

      or

AC Volts 23 Amps @120/240 Volts

AC Frequency 60 Hz

Motor Starting  300 %

Sine Wave Less than 3% Distortion

Flow 20 GPM (* see below)

Pressure 2200 PSI (* see below)

Weight 138 lbs.

Dimensions 8"W * 14"H * 27"L

Pressure Port 1 1/16 SAE O-Ring

Return Port 1 1/16 SAE O-Ring

Case Drain 7/16 - 14

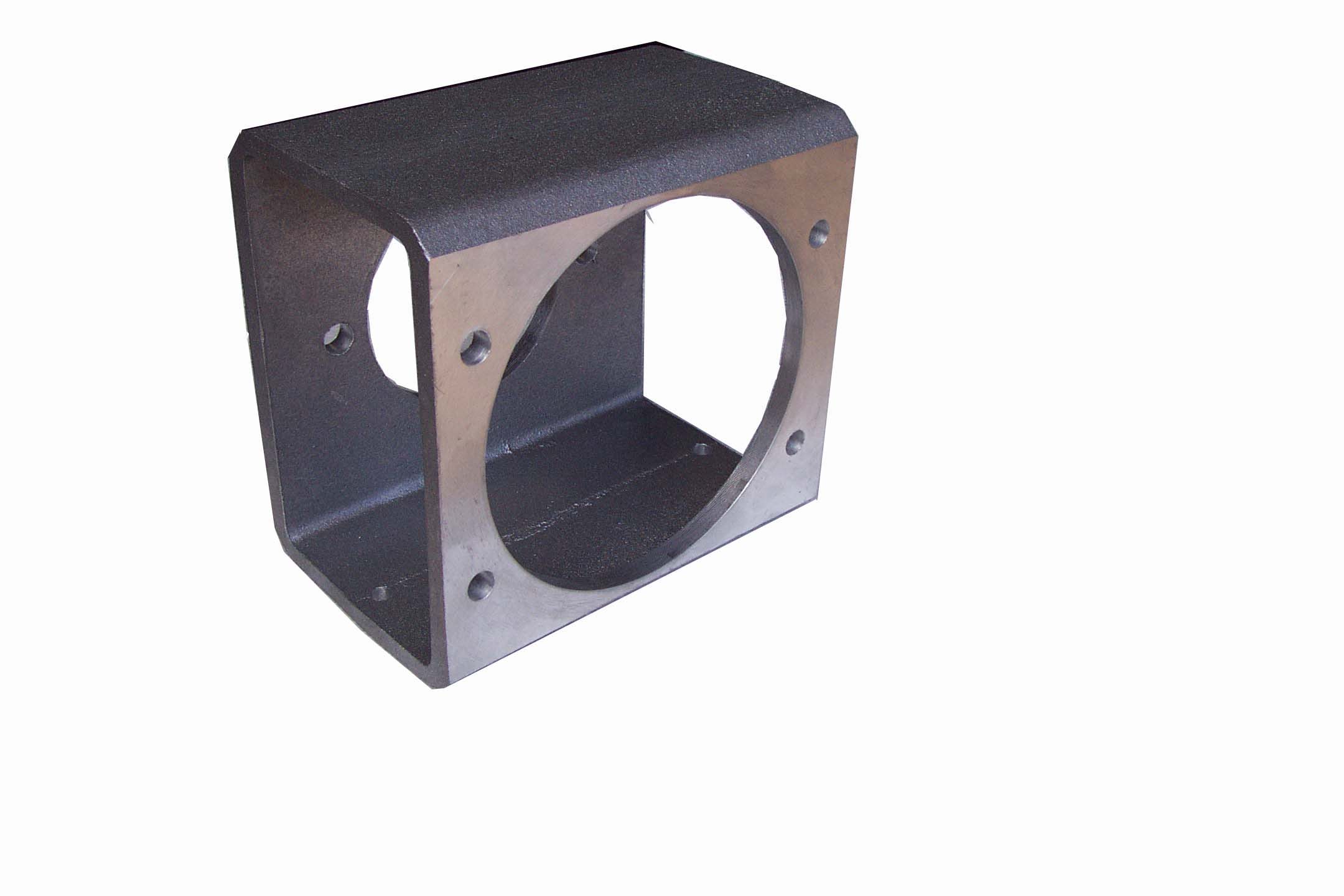

Getec's patented Hydraulic Motor Mount is
machined to .0001 of 1".  This precise motor
alignment enables getec to give a lifetime warranty on the coupling.  It's complete 360 degrees solid casting guarantees a smooth and chatter proof operation between Generator and motor.

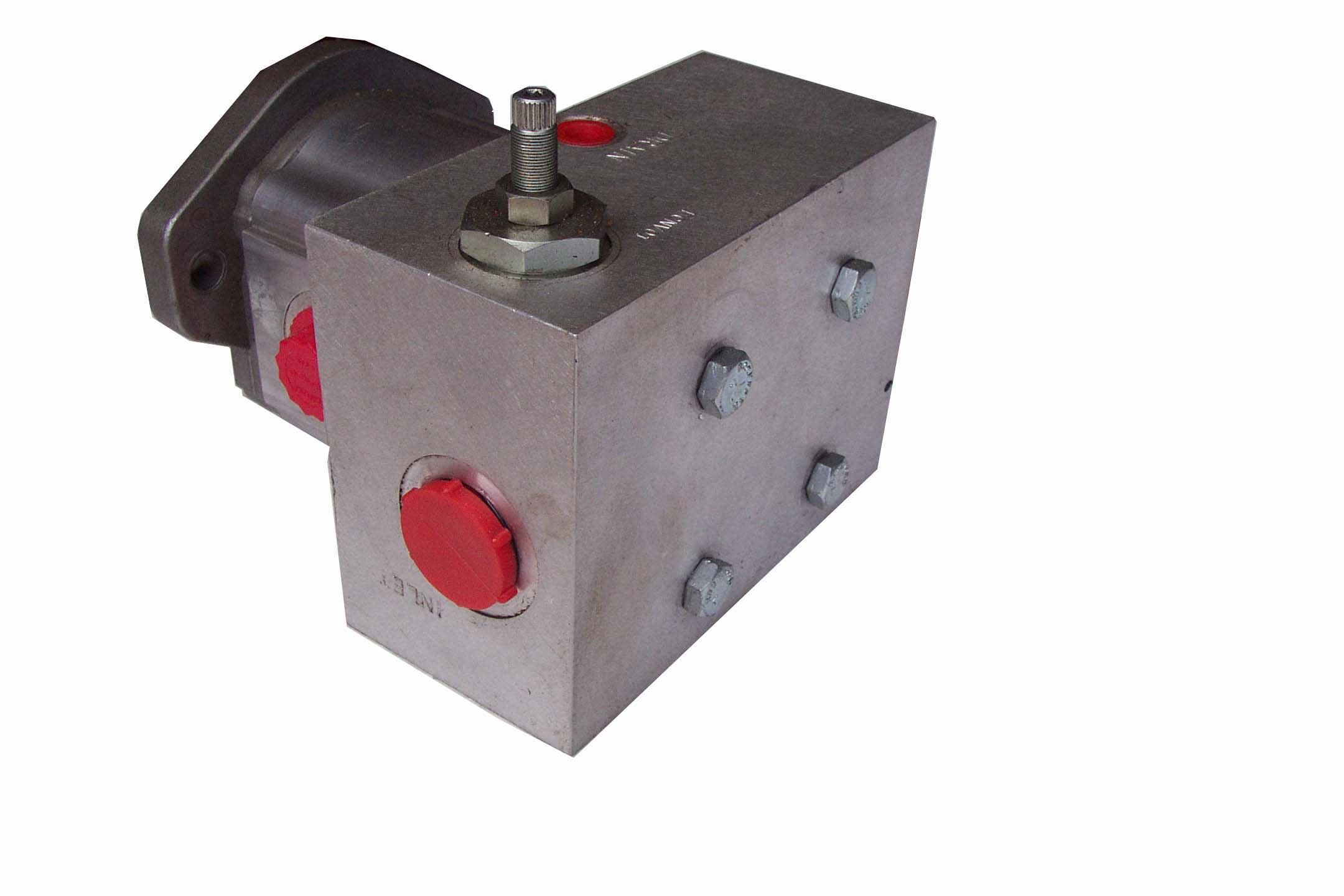

Getec's Integrated Pressure Compensated Flow Regulator (patented pending) eliminates un-necessary hose and fitting connections between motor and flow regulator which reduces installation costs .  This unique arrangement saves valuable space and eliminates future leaky fittings and hoses.

*  Other Flow and Pressure Ranges "Motor Displacements" Avaliable
