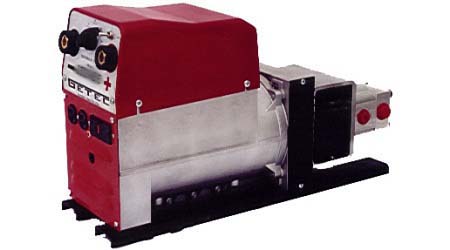

| HYDRA-WELD 300-6 |
| HYDRAULICALLY-DRIVEN
DC WELDER & AC GENERATOR BY  |
| HYDRA-WELD 300-6 |
| HYDRAULICALLY-DRIVEN
DC WELDER & AC GENERATOR BY |
| 120
/ 240V
60 Hz 6000 Watts |
 |
300
Amp
DC |
| QUALITY FEATURES | |
 300
DC Amps |
7
Step – 3 Range |
| 70%
Duty Cycle |
Locking
Weld Receptacles |
| SPECIFICATIONS | |||
| Flow |
= 20 GPM | Volts |
= 120 or 120 / 240 |
| Pressure |
= 2200 PSI Max | Generator
Output |
= 6000 Watt |
| Frequency |
= 60 Hz | Amps |
= 300 DC Amps |
| Weight |
= 143 Lbs | Strike
Voltage |
= 82 VDC |
| Weld
Voltage |
= 22 – 28 VDC | Dimensions
(inches) |
= 8W*14H*27L |
|
FERNDALE, NY 12734 |
(845) 292-0800 http://www.geteck.com |
